Jual Needle ValveSpecifications Needle Valve
- Working Pressure
- Temperature
- Flow Coefficient
- Body Material
- O-Ring Material
- End Connections
– Type
– Size - Up to 3000 psig (206 bar)
- 20 to 450°F (–28 to 232°C)
- Up to 0.53
- 316 stainless steel, brass, alloy 400
Fluorocarbon FKM
1/8 to 3/8 in.; 6 mm
Jual Regulating Valve – Swagelok
KCB1E0A2A5P20000
| Body Material Cap Assembly Cleaning Process Flow Coefficient Maximum Inlet Pressure Outlet Range Port Configuration Port Type Handle Color Handle Style Max Temperature Sensing Mechanism Series UNSPSC (4.03) eClass (6.0) UNSPSC (11.0501) | 316 Stainless Steel Standard Standard Cleaning and Packaging (SC-10) 0.20 Cv 50 psig (3.4 bar) 0 to 50 psig (3.4 bar) Inlet/Outlet; No Gauge Port {A} 1/8 in. Female NPT Green Knob Handle 176°F (80°C) Piston KCB Compact Back-Pressure Regulator 41112404 37-01-11-08 41112404 |
|
| KCB1G0A2A5P60000 | Body Material Cap Assembly Cleaning Process Flow Coefficient Maximum Inlet Pressure Outlet Range Port Configuration Port Type Handle Color Handle Style Max Temperature Sensing Mechanism Series UNSPSC (4.03) eClass (6.0) UNSPSC (11.0501) | 316 Stainless Steel Panel Mount Standard Cleaning and Packaging (SC-10) 0.20 Cv 250 psig (17.2 bar) 0 to 250 psig (17.2 bar) Inlet/Outlet; No Gauge Port {A} 1/8 in. Female NPT Green Knob Handle 176°F (80°C) Piston KCB Compact Back-Pressure Regulator 41112404 37-01-11-08 41112404 |
| KCB1F0A2A5P60000 | Body Material Cap Assembly Cleaning Process Flow Coefficient Maximum Inlet Pressure Outlet Range Port Configuration Port Type Handle Color Handle Style Max Temperature Sensing Mechanism Series UNSPSC (4.03) eClass (6.0) UNSPSC (11.0501) | 316 Stainless Steel Panel Mount Standard Cleaning and Packaging (SC-10) 0.20 Cv 100 psig (6.8 bar) 0 to 100 psig (6.8 bar) Inlet/Outlet; No Gauge Port {A} 1/8 in. Female NPT Green Knob Handle 176°F (80°C) Piston KCB Compact Back-Pressure Regulator 41112404 37-01-11-08 41112404 |
JUAL,Needle Valve, 0.21 Cv, 1/4 in. Swagelok Tube Fitting, Vee Stem Part No. SS-20VS4Stainless Steel Integral Bonnet Needle Valve, 0.21 Cv, 1/4 in. Swagelok Tube Fitting, Vee Stem
Part No. SS-20VS4
Specification
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Max Temperature with Pressure Rating | 450°F @ 4130 PSIG /232°C @ 284 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Not Applicable |
| Handle Style | Stainless Steel Bar |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.125 in /3.2 mm |
| Packing | PFA |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Vee |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Needle Valve 1.80 Cv 1/2 in FNPT Part No. SS-18RF8 swagelok
JUAL Needle Valve, 1.80 Cv, 1/2 in. FNPT, Regulating Stem
Part No. SS-18RF8
Specification
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Female NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Max Temperature with Pressure Rating | 450°F @ 3435 PSIG /232°C @ 236 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Aluminum Bar |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.375 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Regulating |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
Jual Needle Valve 0.86 Cv 1/2 in MNPT x 1/2 in FNPT SS-6HNBM8-F8
JUAL ,Stainless Steel Severe Service High Pressure Union Bonnet Needle Valve, 0.86 Cv, 1/2 in. MNPT x 1/2 in. FNPT, Ball Stem Part No. SS-6HNBM8-F8
Specification
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Max Temperature with Pressure Rating | 450°F @ 7435 PSIG /232°C @ 512 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Aluminum Bar |
| Lubricant | Nickel Never Seez |
| Orifice | 0.250 in |
| Packing | PTFE |
| Room Temperature Pressure Rating | 10000 PSIG @ 100°F /689 BAR @ 37°C |
| Stem Tip Material | Cobalt Based Alloy |
| Stem Type | Ball stem |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Ball Valve 0.6 Cv 1/4 in || Swagelok Tube Fitting || Part No. SS-42GS4JUAL,Ball Valve 0.6 Cv 1/4 in || Swagelok Tube Fitting || Part No. SS-42GS4
Specification
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | Dow M111 |
| Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR |
| Orifice | 0.125 in /3.2 mm |
| Packing | Modified PTFE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL ,3-Way Ball Valve 0.35 Cv 1/4 in || Swagelok Tube Fitting || Part No. SS-42GXS4
3-Way Ball Valve 0.35 Cv 1/4 in
Specification swagelok Part No . SS 42G X S4
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (3-way) |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 3-Way, Switching |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | Dow M111 |
| Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR |
| Orifice | 0.125 in /3.2 mm |
| Packing | Modified PTFE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL Instrument Plug Valve 1/4 in Swagelok Tube Fitting 1.6 Cv || Part No. SS-4P4TInstrument Plug Valve 1/4 in || Swagelok Tube Fitting 1.6 Cv || Part No. SS-4P4T
Specification Part No Ball Valve Swagelok SS-4P4T
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| UNSPSC (SWG01) | 40141600 |
| eClass (4.1) | 37010416 |
| eClass (5.1.4) | 37010416 |
| eClass (6.0) | 37-01-04-16 |
| eClass (6.1) | 37-01-04-16 |
| UNSPSC (10.0) | 40141626 |
| UNSPSC (11.0501) | 40141626 |
| UNSPSC (13.0601) | 40141626 |
| UNSPSC (15.1) | 40141626 |
| UNSPSC (4.03) | 40141600 |
JUAL Ball Valve 6.0 Cv 3/8 in || Swagelok Tube Fitting || Part No SS-44S6
JUALBall Valve 6.0 Cv, 3/8 in || Swagelok Tube Fitting || Part No. SS-44S6
Specification Product Ball valve swagelok Part No . SS – 44S6
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| Max Temperature with Pressure Rating | 150 F 2500 PSIG /65 C 172 BAR |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | DOW 111 and WL8 Mix |
| O-Ring | PTFE |
| Orifice | 0.281 in /7.1 mm |
| Ring/Disc Material | PTFE-Coated Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Service Class | General |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
JUAL Ball Valve, PCTFE Seats, 1/2 in. FNPT Part No. SS-83KF8Ball Valve PCTFE Seats 1/2 in FNPT Part No. SS-83KF8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Female NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Feature | PCTFE Seat |
| Flow Path | Standard (2-way) |
| UNSPSC (SWG01) | 40141607 |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Phenolic Handle |
| Lubricant | Christo-lube MCG 111 (WL8) |
| Max Temperature Pressure Rating | 250°F @ 1000 PSIG /121°C @ 68.9 BAR |
| O-Ring | Fluorocarbon FKM |
| Orifice | 0.187 in /4.7 mm |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seat Material | PCTFE |
| Service Class | General |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL,Ball Valve1/4 in. Swagelok Tube Fitting Part No. SS-S62PS4
Ball Valve 1/4 in. Swagelok Tube Fitting Part No SS-S62PS4
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Feature | Steam Service |
| Flow Path | Standard (2-way) |
| Size | 1/4 in. Nominal – 62 Series |
| UNSPSC (SWG01) | 40141607 |
| Ball/Stem Material | Stainless Steel |
| Fastener Material | 316 Stainless Steel |
| Flange Seal Material | Grafoil® |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Yellow |
| Handle Style | Lever |
| Lubricant | Christo-lube MCG 111 (WL8) |
| Max Temperature Pressure Rating | 600°F @ 200 PSIG /315°C @ 13.7 BAR |
| Packing | PEEK |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Seat Material | PEEK |
| Seat Spring Material | 316 Stainless Steel |
| Service Class | Steam Service |
| Stem Bearing Material | PEEK |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL Ball Valve 12 Cv 1/2 in Swagelok Tube Fitting Part No. SS-45S8Ball Valve 12 Cv 1/2 in Swagelok Tube Fitting Part No. SS-45S8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| Max Temperature with Pressure Rating | 150 F 2500 PSIG /65 C 172 BAR |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | DOW 111 and WL8 Mix |
| O-Ring | PTFE |
| Orifice | 0.406 in /10.3 mm |
| Ring/Disc Material | PTFE-Coated Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Service Class | General |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
JUAL Instrument Plug Valve 1/2 in Swagelok Tube Fitting 4.4 Cv Part No. SS-8P6T
Specification Produk Valve Swagelok
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| UNSPSC (SWG01) | 40141600 |
| eClass (4.1) | 37010416 |
| eClass (5.1.4) | 37010416 |
| eClass (6.0) | 37-01-04-16 |
| eClass (6.1) | 37-01-04-16 |
| UNSPSC (10.0) | 40141626 |
| UNSPSC (11.0501) | 40141626 |
| UNSPSC (13.0601) | 40141626 |
| UNSPSC (15.1) | 40141626 |
| UNSPSC (4.03) | 40141600 |
JUAL Ball Valve Reinforced PTFE Seats 3/8 in. Swagelok Tube Fitting Part No. SS-62TS6 Specification Produk
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| Size | 1/4 in. Nominal – 62 Series |
| UNSPSC (SWG01) | 40141607 |
| Ball/Stem Material | Stainless Steel |
| Fastener Material | 316 Stainless Steel |
| Flange Seal Material | Fluorocarbon FKM |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | DOW 111 and WL8 Mix |
| Max Temperature Pressure Rating | 450°F @ 100 PSIG /232°C @ 6.8 BAR |
| Packing | Reinforced PTFE |
| Room Temperature Pressure Rating | 2200 PSIG @ 100°F /151 BAR @ 37°C |
| Seat Material | Reinforced PTFE |
| Seat Spring Material | 316 Stainless Steel |
| Service Class | General |
| Stem Bearing Material | Alloy X750 |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL Ball Valve 0.6 Cv 1/4 in Swagelok Tube Fitting Part No. SS-42GS4
Specification Produk| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | Dow M111 |
| Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR |
| Orifice | 0.125 in /3.2 mm |
| Packing | Modified PTFE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL ,3-Way Ball Valve 0.35 Cv 1/4 in Swagelok Tube Fitting Part No. SS-42GXS4
Specification Product
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Connection 3 Size | 1/4 in. |
| Connection 3 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (3-way) |
| UNSPSC (SWG01) | 40141607 |
| Actuator Type | Manual |
| Ball/Stem Material | Stainless Steel |
| Flow Pattern | 3-Way, Switching |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | Dow M111 |
| Max Temperature Pressure Rating | 300°F @ 2500 PSIG /148°C @ 172 BAR |
| Orifice | 0.125 in /3.2 mm |
| Packing | Modified PTFE |
| Ring/Disc Material | Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
JUAL Needle Valve swagelok 0.37 Cv 1/4 in Part No. SS-1RM4 Specification Product
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Male NPT |
| Max Temperature with Pressure Rating | 450°F @ 3435 PSIG /232°C @ 236 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Phenolic Knob |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.172 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Regulating |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Needle Valve swagelok 1/4 in Part No. SS-1RS4-A Specification Product
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Feature | Angle Pattern |
| Max Temperature with Pressure Rating | 450°F @ 3435 PSIG /232°C @ 236 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Angle Pattern (2-way) |
| Handle Color | Black |
| Handle Style | Phenolic Knob |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.172 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Regulating |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Needle Valve Swagelok 0.37 Cv 1/4 in MNPT x 1/4 in SS-1KM4-S4 Specification Product
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Max Temperature with Pressure Rating | 200°F @ 4295 PSIG /93°C @ 295 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Phenolic Knob |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.172 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | PCTFE |
| Stem Type | Soft-Seat PCTFE |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Needle Valve Swagelok 1/4 in FNPT Part No. SS-1RF4 Specification Product
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Female NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| Max Temperature with Pressure Rating | 450°F @ 3435 PSIG /232°C @ 236 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Black |
| Handle Style | Phenolic Knob |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.250 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Regulating |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |

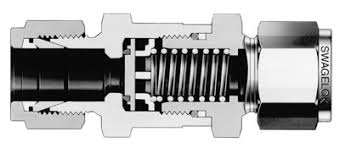

JUAL Stainless Steel Poppet Check Valve 1/4 in Swagelok Tube Fitting 3 to 50 psig (0.21 to 3.5 bar) Part No. SS-4CA-3
Specification Product Check Valve Swagelok Part No SS-4CA-3
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Cracking Pressure | 3 to 50 psi (0.21 to 3.5 bar, 0.021 to 0.35 MPa) |
| Feature | O-rings: Fluorocarbon FKM |
| Surface Finish | Standard |
| UNSPSC (SWG01) | 40141641 |
| Lubricant | Christo-lube MCG 111 (WL8) |
| Max Temperature Pressure Rating | 375°F @ 2185 PSIG /190°C @ 150 BAR |
| Room Temperature Pressure Rating | 3000 PSIG @ 100°F /206 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Spring Coating | None |
| Testing | No Optional Testing |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27-30-06-01 |
| eClass (6.1) | 27-30-06-01 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (4.03) | 40141601 |
| Valve Material | 316 Stainless Steel |
JUAL Check Valve 3/8 in Swagelok Tube Fitting 1 psig (0.07 bar) Part No. SS-CHS6-1
Specification Product Check Valve Swagelok SS-CHS6-1
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Cracking Pressure | 1 psi (0.07 bar, 0.007 MPa) |
| Feature | O-rings: Fluorocarbon FKM |
| Surface Finish | Standard |
| UNSPSC (SWG01) | 40141641 |
| Backup Ring Material | PTFE |
| Lubricant | Christo-lube MCG 111 (WL8) |
| Max Temperature Pressure Rating | 400°F @ 4280 PSIG /204°C @ 294 BAR |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Spring Coating | None |
| Testing | No Optional Testing |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27-30-06-01 |
| eClass (6.1) | 27-30-06-01 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (4.03) | 40141601 |
JUAL Needle Valve Swagelok 1/2 in MNPT x 1/2 in FNPT Part No. SS-6PNBGM8-F8
Specification Product Needle Valve Swagelok 1/2 in MNPT x 1/2 in FNPT Part No. SS-6PNBGM8-F8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Feature | Ball Tip Design |
| UNSPSC (SWG01) | 40141600 |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141600 |
Jual Needle Valve Swagelok 0.73 Cv 1/2 in MNPT x 1/2 in Part No. SS-26VM8-F8
Specification Product Needle Valve Swagelok0.73 Cv 1/2 in MNPT x 1/2 in Part No. SS-26VM8-F8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Max Temperature with Pressure Rating | 450°F @ 4130 PSIG /232°C @ 284 BAR |
| UNSPSC (SWG01) | 40141602 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Not Applicable |
| Handle Style | Stainless Steel Bar |
| Lubricant | Perf. Polyether/Tung. Disulfide (WL7) |
| Orifice | 0.250 in |
| Packing | PFA |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Stem Tip Material | 316 Stainless Steel |
| Stem Type | Vee |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141602 |
| Valve Material | Stainless Steel |
JUAL Stainless Steel 3-Valve Instrument Manifold1/2 in Female NPT x Flange (MSS) Part No SS-V3NBF8-FL
Specification Product 3-Valve Instrument Manifold1/2 in Female NPT Part No SS-V3NBF8-FL
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Type | Flange |
| Process Connection | 1/2 in. Female NPT |
| UNSPSC (SWG01) | 40141602 |
| eClass (4.1) | 37010269 |
| eClass (5.1.4) | 37010269 |
| eClass (6.0) | 37-01-02-69 |
| eClass (6.1) | 37-01-02-69 |
| UNSPSC (10.0) | 40141600 |
| UNSPSC (11.0501) | 40141600 |
| UNSPSC (13.0601) | 40141600 |
| UNSPSC (15.1) | 40141600 |
| UNSPSC (4.03) | 40141602 |
JUAL Male Connector Swagelok 3/8 in Tube OD x 1/2 in Male NPT Part No SS-600-1-8
Specification Product male connector swagelok ss-6001-1-8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Body Type | Male Connector |
| Bulkhead | No Bulkhead |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Male NPT |
| UNSPSC (SWG01) | 40141720 |
| Series | Swagelok Tube and Adapter Fittings |
| eClass (4.1) | 37030703 |
| eClass (5.1.4) | 37020590 |
| eClass (6.0) | 37-02-05-90 |
| eClass (6.1) | 37-02-05-90 |
| UNSPSC (10.0) | 40142613 |
| UNSPSC (11.0501) | 40142613 |
| UNSPSC (13.0601) | 40183110 |
| UNSPSC (15.1) | 40183110 |
| UNSPSC (4.03) | 40141720 |
JUAL Male Elbow Swagelok 3/8 in Tube OD x 1/2 in Male NPT Part No SS-600-2-8
Specification Product male elbow swagelok ss-600-2-8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Body Type | Male Elbow |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Male NPT |
| UNSPSC (SWG01) | 40141718 |
| Series | Swagelok Tube and Adapter Fittings |
| eClass (4.1) | 37020715 |
| eClass (5.1.4) | 37020501 |
| eClass (6.0) | 37-02-05-01 |
| eClass (6.1) | 37-02-05-01 |
| UNSPSC (10.0) | 40142604 |
| UNSPSC (11.0501) | 40142604 |
| UNSPSC (13.0601) | 40183101 |
| UNSPSC (15.1) | 40183101 |
| UNSPSC (4.03) | 40141718 |
JUAL Male Connector 1/2 in Tube OD x 1/2 in Male NPT Part No SS-810-1-8
Specification Product Male Connector swagelok 1/2 in Tube OD x 1/2 in Male NPT Part No SS-810-1-8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Body Type | Male Connector |
| Bulkhead | No Bulkhead |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Male NPT |
| UNSPSC (SWG01) | 40141720 |
| Series | Swagelok Tube and Adapter Fittings |
| eClass (4.1) | 37030703 |
| eClass (5.1.4) | 37020590 |
| eClass (6.0) | 37-02-05-90 |
| eClass (6.1) | 37-02-05-90 |
| UNSPSC (10.0) | 40142613 |
| UNSPSC (11.0501) | 40142613 |
| UNSPSC (13.0601) | 40183110 |
| UNSPSC (15.1) | 40183110 |
| UNSPSC (4.03) | 40141720 |
Jual Ball Valve Swagelok Reinforced PTFE Seats 3/4 in Pipe Socket Weld SS-65TSW12P
Description Product Ball Valve swagelok
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/4 in. |
| Connection 1 Type | Pipe Socket Weld |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | Pipe Socket Weld |
| Flow Path | Standard (2-way) |
| Size | 1 in. Nominal – 65 Series |
| UNSPSC (SWG01) | 40141607 |
| Ball/Stem Material | Stainless Steel |
| Fastener Material | 316 Stainless Steel |
| Flange Seal Material | Fluorocarbon FKM |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Lubricant | DOW 111 and WL8 Mix |
| Max Temperature Pressure Rating | 450°F @ 100 PSIG /232°C @ 6.8 BAR |
| Packing | Reinforced PTFE |
| Room Temperature Pressure Rating | 2200 PSIG @ 100°F /151 BAR @ 37°C |
| Seat Material | Reinforced PTFE |
| Seat Spring Material | 316 Stainless Steel |
| Service Class | General |
| Stem Bearing Material | Alloy X750 |
| Testing | Testing according to WS-22 |
| eClass (4.1) | 37010401 |
| eClass (5.1.4) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| eClass (6.1) | 37-01-04-01 |
| UNSPSC (10.0) | 40141607 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (13.0601) | 40141607 |
| UNSPSC (15.1) | 40141607 |
| UNSPSC (4.03) | 40141607 |
| Valve Material | Stainless Steel |
Jual Regulator Pressure Merek Parker
PERFORMANCE CHARACTERISTICS
BODY MATERIAL :316L Stainless Steel
COMPRESSION MEMBER MATERIAL :316L Stainless Steel (std), Hastelloy C-22
DIAPHRAGM MATERIAL :316L Stainless Steel (std), Hastelloy C-22
SEAT MATERIAL PCTFE (std), Vespel
POPPET MATERIAL 316L :Stainless Steel (std), Hastelloy C-22
POPPET SPRING MATERIAL 316L :Stainless Steel (std), Inconel
POPPET SCREEN MATERIAL :Hastelloy C-22
CAP MATERIAL :Nickel Plated Brass
NUT MATERIAL 316L :Stainless Steel
KNOB MATERIAL ABS :(Black) (959W), ABS (White) (NPR959W)
BURST PRESSURE :10,500 psig (724 barg)
PROOF PRESSURE :5,250 psig (362 barg)
FLOW CAPACITY (CV) :Cv 0.04 (std), Cv 0.2
INTERNAL LEAK RATE :< 2 x 10-9 scc/sec He
EXTERNAL LEAK RATE :< 2 x 10-10 scc/sec He
INTERNAL VOLUME (CC) :5.41 cc without fittings
WEIGHT (LBS) :2
WEIGHT (KG) :0.9
SURFACE FINISH (RA) :15-20 micro inch Ra (std), 10 micro inch Ra
MAXIMUM INLET PRESSURE (PSIG) :Cv 0.04 3,500 psig, Cv 0.2 1,250 psig
MAXIMUM INLET PRESSURE (BARG) :Cv 0.04 240 barg, Cv 0.2 86 barg
OUTLET PRESSURE :1-30 psig (2 barg), 3-100 psig (7 barg), 5-150 psig (10.3 barg (959W),-25 in Hg – 0-30 psig (NPR959W)
MAXIMUM WORKING TEMPERATURE (C) :65°C
MAXIMUM WORKING TEMPERATURE (F) :150°F
MINIMUM WORKING TEMPERATURE (C) :-40°C
MINIMUM WORKING TEMPERATURE (F) :-40°F
Jual Manifold Flange Merek Anderson Greenwood
M4AHIC
| Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat | |
| M4AHIC-AM | Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AVDC | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat |
| M4AVDC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVIC | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat; |
| M4AVIC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS | Flange X Flange; Grafoil Packing; 316SS Body & Seat |
| M4AHIS-AM | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS-AMS | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4AVDS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4AVDS-AM | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVDS-AMS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4AVIS | Flange X Flange; Teflon Packing; 316SS Body & Seat |
| M4AVIS-AM | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Carbon Steel Mounting Bracket |
| M4AVIS-AMS | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Stainless Steel Mounting |
Showing 1 to 15
| Part Number | Description |
|---|---|
| M4TPHIC-4 | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat |
| M4TPHIC-4-AM | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHPC-4-XP | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat |
| M4TPVDC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVIC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat |
| M4TPVIC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4 | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat |
| M4TPHIS-4-AM | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4-AMS | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4TPHPS-4-XP | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4TPVDS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVDS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4TPVIS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat |
| M4TPVIS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPVIS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
Jual Ball Valve Swagelok SS-63TS12-33OSpesification Product Ball Valve SS-63TS12-33O
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 3/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Available Option | Pneumatic Actuator |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 3/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Path | Standard (2-way) |
| UNSPSC (SWG01) | 40141607 |
| Flow Pattern | 2-Way, Shutoff, Straight |
| eClass (4.1) | 37010401 |
| eClass (6.0) | 37-01-04-01 |
| UNSPSC (11.0501) | 40141607 |
| UNSPSC (4.03) | 40141607 |
Jual Hex Reducing Coupling SwagelokDescription Product Part Reducing Coupling Swagelok No . SS-8-HRCG-4
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Female NPT |
| Body Type | Hex Reducing Coupling |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| UNSPSC (SWG01) | 31163000 |
| Series | Pipe Fittings |
| eClass (4.1) | 37020564 |
| eClass (5.1.4) | 37020514 |
| eClass (6.0) | 37-02-05-14 |
| eClass (6.1) | 37-02-05-14 |
| UNSPSC (10.0) | 0 |
| UNSPSC (11.0501) | 40142321 |
| UNSPSC (13.0601) | 40173607 |
| UNSPSC (15.1) | 40141719 |
| UNSPSC (4.03) | 31163000 |
Jual Manifold Whitney (Manifolds Valves SS-M3NBF8-G)
Description Product Manifold WhitneySS-M3NBF8-G
| Applications |
| Pressure & Differential Pressure Instrumentation |
| Features |
| 2-Valves, 3-Valves, 5-Valves Manifolds designs Stainless Steel, Alloy 400(Monel), A105 Available direct or remote mounting Isolation, calibration and vent Available PTFE or Grafoil seats |
| Specifications |
| – Maximum Operating Pressure : 6000 psig(420 barg) @ 100℉(38℃) – Operating Temperature Range : PTFE Packing : -65℉(-54℃) to 450℉(233℃) Grafoil Packing : -65℉(-54℃) to 1200℉(649℃) |
Jual Manifold Whitney SS-M3NBF58-FL
Description Product Manifold SS-M3NBF58-FL
Jual 3 Valve Manifold Merek Anderson Grenwood
M4TPHIC-4
| 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat | |
| M4TPHIC-4-AM | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHPC-4-XP | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat |
| M4TPVDC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVIC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat |
| M4TPVIC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4 | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat |
| M4TPHIS-4-AM | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4-AMS | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4TPHPS-4-XP | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4TPVDS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVDS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4TPVIS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat |
| M4TPVIS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPVIS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
Showing 1 to 17 of 17 entries
| Part Number | Description |
|---|---|
| M4AHIC | Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat |
| M4AHIC-AM | Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AVDC | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat |
| M4AVDC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVIC | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat; |
| M4AVIC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS | Flange X Flange; Grafoil Packing; 316SS Body & Seat |
| M4AHIS-AM | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS-AMS | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4AVDS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4AVDS-AM | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVDS-AMS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4AVIS | Flange X Flange; Teflon Packing; 316SS Body & Seat |
| M4AVIS-AM | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Carbon Steel Mounting Bracket |
| M4AVIS-AMS | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Stainless Steel Mounting |
Jual Needle Valve Swagelok SS-6PNBGM8-F8
Description Product Needle Valve swagelok ss-6pnbgm8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Feature | Ball Tip Design |
| UNSPSC (SWG01) | 40141600 |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141600 |
Jual 3 Valve Manifold Merek Anderson Grenwood
M4TPHIC-4
| 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat | |
| M4TPHIC-4-AM | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHPC-4-XP | 1/2"FNPT X Flange; Grafoil Packing; Carbon Steel Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat |
| M4TPVDC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVIC-4 | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat |
| M4TPVIC-4-AM | 1/2"FNPT X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4 | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat |
| M4TPHIS-4-AM | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPHIS-4-AMS | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4TPHPS-4-XP | 1/2"FNPT X Flange; Grafoil Packing; 316SS Body & Seat Conforms to ASME B31.1 Power Piping Specification |
| M4TPVDS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4TPVDS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4TPVDS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4TPVIS-4 | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat |
| M4TPVIS-4-AM | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4TPVIS-4-AMS | 1/2"FNPT X Flange; Teflon Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
Showing 1 to 17 of 17 entries
| Part Number | Description |
|---|---|
| M4AHIC | Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat |
| M4AHIC-AM | Flange X Flange; Grafoil Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AVDC | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat |
| M4AVDC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body ; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVIC | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat; |
| M4AVIC-AM | Flange X Flange; Teflon Packing; Carbon Steel Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS | Flange X Flange; Grafoil Packing; 316SS Body & Seat |
| M4AHIS-AM | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Carbon Steel Mounting Bracket |
| M4AHIS-AMS | Flange X Flange; Grafoil Packing; 316SS Body & Seat with Stainless Steel Mounting Bracket |
| M4AVDS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat |
| M4AVDS-AM | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Carbon Steel Mounting Bracket |
| M4AVDS-AMS | Flange X Flange; Teflon Packing; 316SS Body; Delrin Seat with Stainless Steel Mounting Bracket |
| M4AVIS | Flange X Flange; Teflon Packing; 316SS Body & Seat |
| M4AVIS-AM | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Carbon Steel Mounting Bracket |
| M4AVIS-AMS | Flange X Flange; Teflon Packing; 316SS Body & Seat; with Stainless Steel Mounting |
Jual Needle Valve Swagelok SS-6PNBGM8-F8
Description Product Needle Valve swagelok ss-6pnbgm8
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Female NPT |
| Feature | Ball Tip Design |
| UNSPSC (SWG01) | 40141600 |
| eClass (4.1) | 37010203 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37-01-02-03 |
| eClass (6.1) | 37-01-02-03 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (4.03) | 40141600 |
Decription Stainless Steel High Pressure Proportional Relief Valve 1/4 in Swagelok Tube Fitting Part SS-4R3A
| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Size | 1/8 in. |
| UNSPSC (SWG01) | 40141606 |
| Lubricant | Dow Corning Molykote 55 Grease |
| Max Temperature Pressure Rating | 250°F @ 4910 PSIG /121°C @ 338 BAR |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Service Class | High Pressure |
| Testing | No Optional Testing |
| eClass (4.1) | 37010901 |
| eClass (5.1.4) | 37019901 |
| eClass (6.0) | 37-01-09-01 |
| eClass (6.1) | 37-01-99-01 |
| UNSPSC (10.0) | 40141606 |
| UNSPSC (11.0501) | 40141606 |
| UNSPSC (13.0601) | 40141606 |
| UNSPSC (15.1) | 40141606 |
| UNSPSC (4.03) | 40141606 |
| Valve Material | 316 Stainless Steel |
Parker’s carbon steel ball valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Straight Thread x Female Straight Thread
• Panel Mount
• High Pressure 6,000 psi
Options for the carbon steel ball valve include:
• Tee Handle
• Oval Handle
• Padlocking Handle
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Carbon Steel Phosphate Coated Body
• Steel Ball
• PTFE Seats/Seals
• Delrin with Molybdenum Disulphide Seats (Series 500HP, 506HP)
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Hydraulic Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Stainless Steel Pipe Fitting, Reducing Adapter, 1/4 in. Female NPT x 1/8 in. Male NPT SS-4-RA-2
Specification Product Reducing Adapter SS-4-RA-2| Body Material | 316 Stainless Steel |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Female NPT |
| Body Type | Reducing Adapter |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/8 in. |
| Connection 2 Type | Male NPT |
| UNSPSC (SWG01) | 40141719 |
| Series | Pipe Fittings |
| eClass (4.1) | 37020564 |
| eClass (5.1.4) | 37020514 |
| eClass (6.0) | 37-02-05-14 |
| eClass (6.1) | 37-02-05-14 |
| UNSPSC (10.0) | 40142305 |
| UNSPSC (11.0501) | 40142305 |
| UNSPSC (13.0601) | 40173607 |
| UNSPSC (15.1) | 40141719 |
| UNSPSC (4.03) | 40141719 |
Jual Tube Cutter Swagelok
Specification Product Tube Cutter Swagelok| UNSPSC (SWG01) | 27111500 |
| eClass (4.1) | 21040302 |
| eClass (5.1.4) | 21049090 |
| eClass (6.0) | 21-04-90-90 |
| eClass (6.1) | 21-04-90-90 |
| UNSPSC (10.0) | 27111526 |
| UNSPSC (11.0501) | 23241610 |
| UNSPSC (13.0601) | 23241610 |
| UNSPSC (15.1) | 23241610 |
| UNSPSC (4.03) | 27111507 |
| UNSPSC (SWG02) | 41 |
Check Valve 1/2 in. Swagelok Tube Fitting, 1 psig SS-CHS8-1
Body Material
| 316 Stainless Steel | |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Cracking Pressure | 1 psi (0.07 bar, 0.007 MPa) |
| Feature | O-rings: Fluorocarbon FKM |
| Surface Finish | Standard |
| UNSPSC (SWG01) | 40141641 |
| Backup Ring Material | PTFE |
| Lubricant | Christo-lube MCG 111 (WL8) |
| Max Temperature Pressure Rating | 400°F @ 4280 PSIG /204°C @ 294 BAR |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Seal Material | Fluorocarbon FKM |
| Spring Coating | None |
| Testing | No Optional Testing |
| eClass (4.1) | 37010801 |
| eClass (5.1.4) | 27300400 |
| eClass (6.0) | 27-30-06-01 |
| eClass (6.1) | 27-30-06-01 |
| UNSPSC (10.0) | 40141641 |
| UNSPSC (11.0501) | 40141641 |
| UNSPSC (13.0601) | 40141641 |
| UNSPSC (15.1) | 40141641 |
| UNSPSC (4.03) | 40141601 |
| Valve Material | 316 Stainless Steel |
Tidak ada komentar:
Posting Komentar
